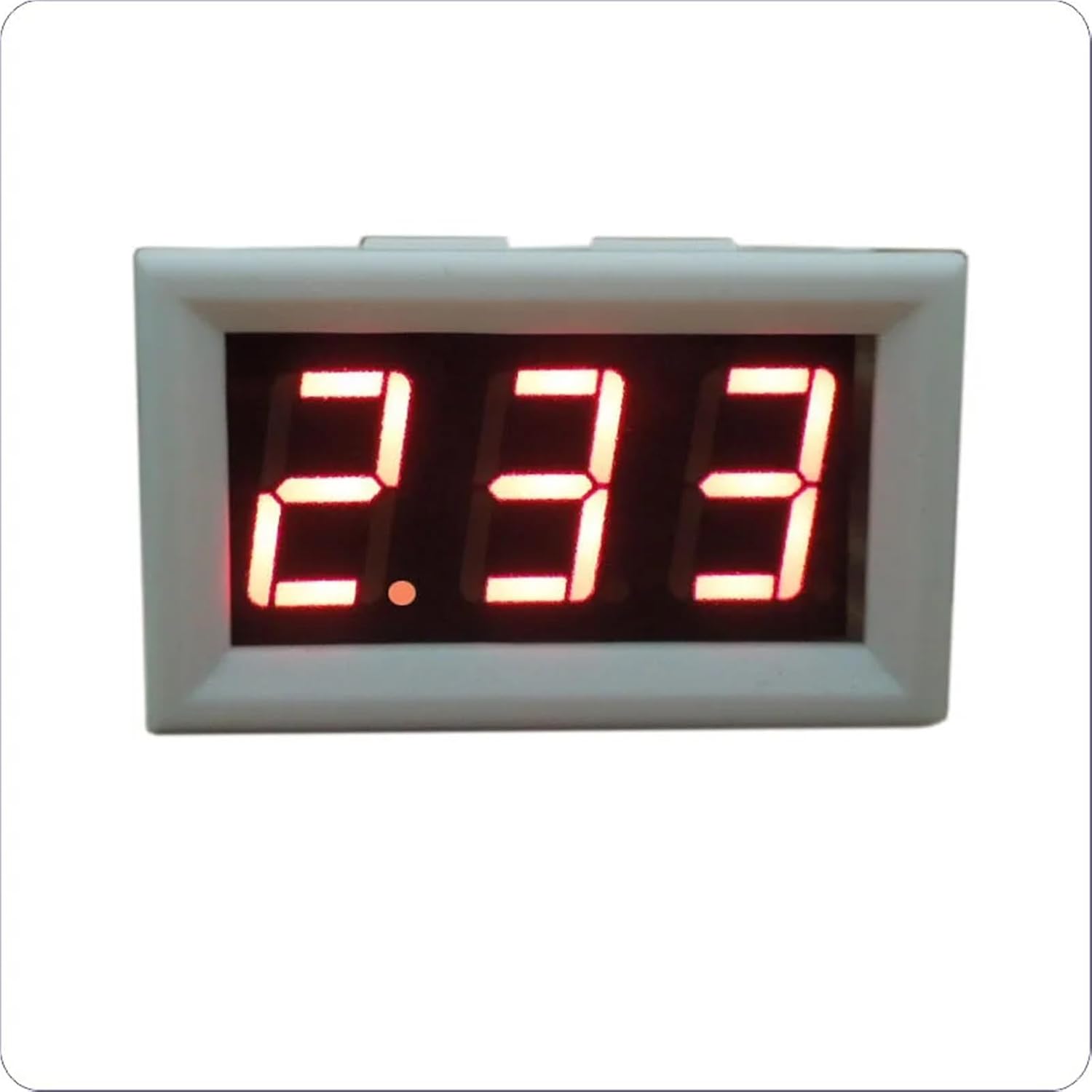

1pc YB27 Three Wires LED Digital Voltage Meter Voltmeter 0-10V 0-30V 0-100V 0-300V 0-600V Voltage Detector Volt Panel MeterTester(Black Cover-Green,DC 0.00-10V)
4.6 (109 items)
Limited Time SaleUS$21.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213683877 | Release Date | 2026/04/12 | List Price | US$14.40 | Model Number | 213683877 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
VoltmeterYB27 Three Wires LED Digital Voltage Meter Voltmeter 0-10V 0-30V 0-100V 0-300V 0-600V 1000V Voltage Detector Volt Panel MeterTesterAttention:The power supply voltage of the instrument should not exceed 30V, and enough safety voltage space should be reserved;Due to the limited space of the sticker, some infrequent ranges will be manually rewritten on the sticker, please do not order if you mind it.DC0- 100V, DC0-300V: When the measured value is less than 9.9V, only two digits will be displayed; when the measured value is greater than 9.9V, only three digits will be displayed.DC0-600V: When the measured value is less than 99V, only two digits are displayed; when the measured value is greater than 99V, only three digits are displayed.Technical Parameters: Dimension:48*29*21 mmMounting hole:45.5*26.5mmPower Supply:DC3.3-30V<;20mATestvoltage:DC0~10V/30V/100V/300V/600V/1000VDisplay mode: 0.56 "LED with red/blue/green digitsMeasurement accuracy: 1% (± 2 digits)Measurement rate: 500mS / timeFeatures: With three wires,the wiring is simple, the installation is convenient.When there is a small tolerance, you can calibrate by the potentiometer on the circuit board.With polarity protection function for meter power supply.Connection Method: With three wires, can be connected to cars,e-bikes or motorcycles.Red wire : Power supply Positive terminal Black wire: Public Negative terminal(Power supply and test negative terminal)Yellow wire: Testing terminalWorking conditions:Operating temperature: -10 ~ +50 Working humidity: 10 ~ 80% (no condensation)Working pressure: 80 ~ 106kPaSun exposure: no direct exposure==========Hign-concerned Chemical : NoneModel Number : YB27DIY Supplies : ELECTRICALDimensions : 48*29*21mmOperating Temperature : -10~50 degreeAccuracy Class : 1%+/-2 digitsP
- Voltmeter
- 1pc YB27 Three Wires LED Digital Voltage Meter Voltmeter 0-10V 0-30V 0-100V 0-300V 0-600V Voltage Detector Volt Panel MeterTester
| Color | Black cover-Green |
|---|---|
| Model | ZMDRXQOJ |
| Brand Name | ZMDRXQOJ |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | ZMDRXQOJ |
